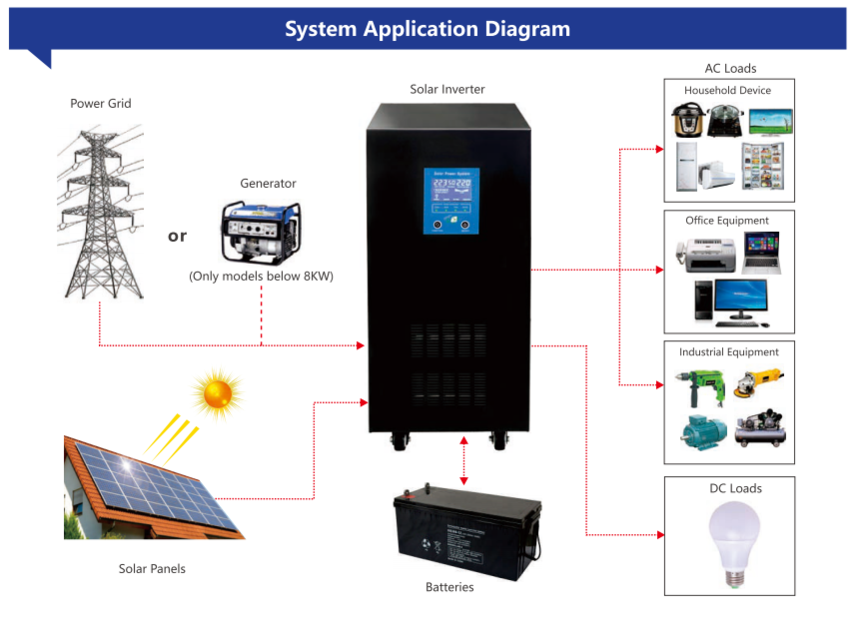

| Technical Parameters |
| Model:NB | 35112/24 | 501124860112244870124/48 | 70112 10212/2448 | 12224 | 15224/48 | 20248 | 20224/96 | 25224/48 | 30224896 | 35248/96 | 40248/96 |
| Rated Power | 350W | 500W | 600W | 700W | 700W | 1000W | 1200Ww | 1500W | 2000w | 2000W | 2500W | 3000W | 3500w | 4000W |
| Peak Power(20ms) | 1050VA | 1500VA | 1800VA | 2100VA | 2100VA | 3000VA | 3600VA | 4500VA | 6000VA | 6000VA | 7500VA | 9000VA | 10500VA | 12000VA |
| Start Motor | 0.3HP | 0.5HP | 0.5HP | 0.5HP | 0.5HP | 1HP | 1HP | 1.5HP | 2HP | 2HP | 3HP | 3HP | 3HP | 3HP |
| Battery Voltage | 12/24VDC | 12/24/48VDC | 24/48VDC | 12VDC | 12/2448VDC | 24VDC | 24/48VDC | | | | | | |
| Built-in solar controller charging current (optional) | 10A~30A(PWM) | 10A~60A(PWM(12V/24V/48V) |
| Size(L*W*Hmm) | 335*210*122 | 410*143*210 | 400*180*320 | 420*208*348 | 460245*445 |
| Package Size(L*W*Hmm) | 385*270*185(1pc)/400*280*400(2pcs) | 460*200*270 | 460*240*380 | 490*300*400 | 530*310*550 |
| N.W. (kg) | 6.5 | 8 | 9 | 10 | 11 | 13 | 14 | 18 | 21 | 23 | 25 | 29 | 31 | 46 |
| G.W. (kg)(Carton Packing) | 7.5 | 9 | 10 | 11 | 12 | 14 | 15 | 19 | 22 | 24 | 26 | 30 | 32 | 48 |
| Installation Method | Desktop | Tower |
| Model:NB | 50248/96/19260248/96/19270296/192| 80396/192 | 10396/192 | 12396/192 153192 | 203220 253220 303240 403384 |
| Rated Power | 5000W | 6000W | 7000W | 8KW | 10KW | 12KW | 15Kw | 20Kw | 25Kw | 30KW | 40KW |
| Peak Power(20ms) | 15000VA | 18000VA | 21000VA | 24KVA | 30KVA | 36KVA | 45KVA | 60KVA | 75KVA | 90KVA | 120KVA |
| Start Motor | 4HP | 4HP | 5HP | 6HP | 7HP | 7HP | 10HP | 10HP | 15HP | 15HP | 20HP |
| Battery Voltage | 48/96/192VDC | 96/192VDC | 96/192VDC | 96/192VDC | 96/192VDC | 192VDC | 220VDC | 220VDC | 240VDC | 384VDC |
| Built-in solar controller charging current (optional) | 10A~60A(PWM 12V/24V/48V) | 50A/100A(PWM) | 50A/100A/150A/200A(PWM) |
| Size(L*W*Hmm) | 460*245*445 | 485*300*646 | 600*300*800 | 720*435*1120 |
| Package Size(L*W*Hmm) | 530*315*550 | 550*365*785 | 665*365*830 | 790*505*1260 |
| N.W. (kg) | 52 | 53 | 62 | 64 | 66 | 70 | 108 | 113 | 119 | 135 | 160 |
| G.W. (kg)(Wooden Packing) | 58 | 59 | 72 | 74 | 77 | 80 | 121 | 130 | 136 | 150 | 180 |
| Installation Method | Tower |
| Input | DC Input Voltage Range | 10.5-15VDC(Single battery voltage) |
| ACInputVoltage Range | 73VAC~138VAC(110VAC/83VAC~148VAC(120VAC/145VAC~275VAC(220VAC/155VAC~285VAC(230VAC)165VAC~295VAC(240VAC)(700W~7000w)
92VAC~128VAC(110VAC/102VAC~138VAC(120VAC)185VAC~255VAC(220VAC/195VAC~265VAC(230VAC)/205VAC~275VAC(240VAC)(8KW~40KW |
| AC Input Frequency Range | 45Hz~55Hz(50Hz)/55Hz~65Hz(60Hz) |
| Max AC chargingcurrent | 6A~15A(Dependingon the model) |
| AC charging voltage | LEAD battery:Charge Voltage:14.2V;Float Voltage:13.8V(Single battery voltage) |
| AC charging method | Three-stage (constant current,constant voltage,floating charge |
| Output | Efficiency(Battery Mode) | ≥85% |
| Output Voltage(Battery Mode) | 110VAC±2%/120VAC±2%/220VAC±2%/230VAC±2%/240VAC±2% |
| Output Frequency(Battery Mode) | 50Hz±0.5 or 60Hz±0.5 |
| Output Wave(Battery Mode) | Pure Sine Wave |
| Efficiency(AC Mode) | >99% |
| Output Voltage(AC Mode) | 110VAC±10%/120VAC±10%/220VAC±10%/230VAC±10%/240VAC±10%(For models below or equal to 7KW);Follow Input(For models above 7KW |
| Output Frequency(AC Mode) | Follow input |
| Outputwaveform distortion(Battery Mode) | ≤3%(Linear load) |
| No load loss(Battery Mode) | ≤2.5%rated power(Models≤7KW);≤1%rated power (models>7KW) |
| No load loss(AC Mode) | ≤2%rated power(charger does not work in AC mode) |
| No load loss(Energy saving Mode) | ≤10W |
Battery Type
(Optional) | Customize battery | Charge and discharge parameters of different types of batteries can becustomized according to user requirements |
| Protection | Battery undervoltage alarm | Factory default:11V(Single battery voltage) |
| Battery undervoltage protection | Factory default:10.5V (Single battery voltage) |
| Battery overvoltage alarm | Factory default:15V(Single battery voltage) |
| Battery overvoltage protection | Factorydefault::17V(Single batteryvoltage) |
| Battery overvoltage recovery voltage | Factory default:14.5V(Single battery voltage) |
| Overload power protection | Automatic protection (battery mode),circuit breaker or insurance (AC mode) |
| Inverter output short circuit protection | Automatic protection (battery mode),circuit breaker or insurance (AC mode) |
| Temperature protection | >90℃(Shut down output) |
| Alarm | A | Normalworking condition,buzzer has no alarm sound |
| B | Buzzer sounds 4 times per second when battery failure,voltage abnormality,overload protection |
| C | When the machine is turned on for thefirst time,the buzzer will prompt 5 when the machine is normal |
Inside Solar
controller
(Optional) | Charging Mode | PWM |
| Charging current | 12V/24V/48V System:10A/20A/30A/40A/50A/60A;96V/192V/240V/384 System:50A/100A/150A/200A |
| PV InputVoltage Range | 15V-44V(12V System);30V-44V(24V System);60V-88V(48V System);120V-176V(96V System);
240V-352V(192V System);300V-440V(240V System);480V-704V(384V System) |
Max PV Input Voltage(Voc)
(At the lowest temperature) | 50V(12V/24VSystem);100V(48V System);200V(96V System);400V(192V System);500V(240V System);750V(384V System) |
| PVArray Maximum Power | 12V System:140W(10A)/280W(20A/420W(30A)/560W(40A/700W(50A)/840W(60A);24V System:280W(10A/560W(20A/840W(30AI/
1120W(40A/1400W(50A/1680W(60A);48V System:560W(10A/1120W(20A)/1680W(30A/2240W(40A)/2800W(50A)/3360W(60A);
96V System:5.6KW(50A/11.2KW(100A);192V System:11.2KW(50A)/22.4KW(100A);220V System:12.8KW(50A)/25.6KW(100A);240V
System:14KW(50A)/28KW(100A/21KW2(150A)28KW*2(200A);384V System:22.4KW(50A)/448KW(100A/33.6KW*2(150A/44.8KW*2(200A) |
| Standby loss | ≤3W |
| Maximum conversion efficiency | >95% |
| Working Mode | Battery First/AC First/Saving Energy Mode |
| Transfer Time | ≤4ms |
| Display | LCD |
| Thermal method | Cooling fan in intelligent control |
| Communication | RS232(Optional) |
| Environment | Operating temperature | -10℃~40℃ |
| Storage temperature | -15℃~60℃ |
| Noise | ≤55dB |
| Elevation | 2000m(More than derating) |
| Humidity | 0%~95%(No condensation) |
| Warranty | 1 year |
| Note:1.Specfcation resubject to change without prior notice;2.Special voltage and power requiements can be customiedaccordingto the actual stuation of users |
