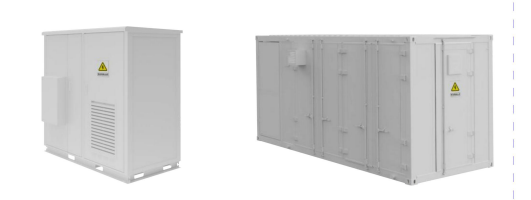

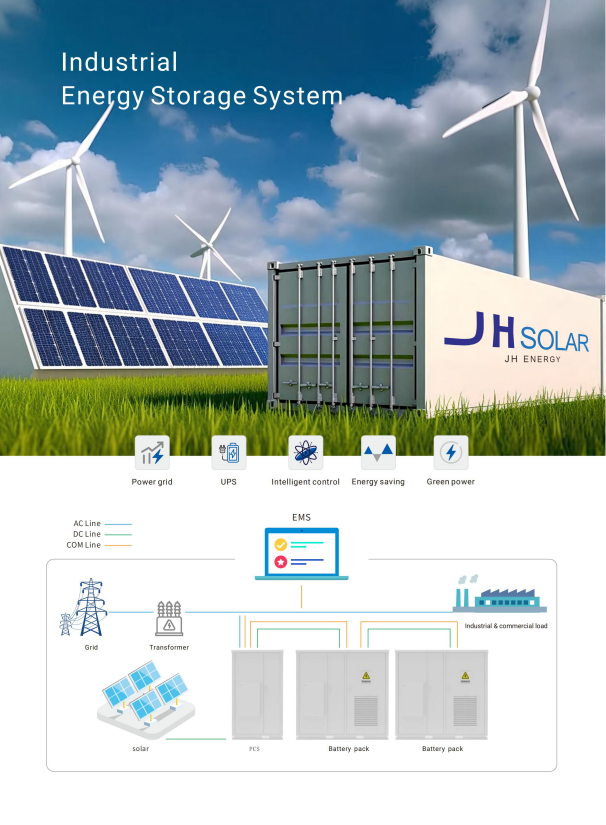

IndustrialEnergy Storage System

Celltype

Lithium iron phosphate(LFP)280Ah

Rated voltage

3.2V

Depth ofdischarge

Deep discharge90%

Installedcapacity

Rated power

215kWh

645kWh

1MWh

Battery rated voltage

768V

720V

720V

Battery voltage range

600V-876V

560V-820V

560V-820V

DCdischarge current

140A

140A

140A

Single Cluster Battery Pack

16S1P

15S1P

15S1P

Number ofbattery

15PCS(15S)

45PCs(15S3P)

75PCS(15S5P)

ACSide

Rated power

100KW

300KW

500KW

Rated gridvoltage

400V

Rated ACcurrent

140A

Allowable voltage range

360V~440V

Rated gridfrequency

50Hz/60Hz

Power Factor

>0.99

AC access method

3W+N+PE

Systemparameters

System efficiency

>86%

Cyclelife

>6000(25℃0.5C>90%DOD70%EOL)

Cooling method

Air Cooling

Allowableambienttemp.

-30~50℃

Maximum working altitude

4000m(>2000mDeratingisrequired)

Fire mode

Heptafluoropropane gas fire extinguishingdevice

International Protection

IP54

Communicationmethod

RS485/CAN

Operating mode

Microgrid,UPS,Backup power
