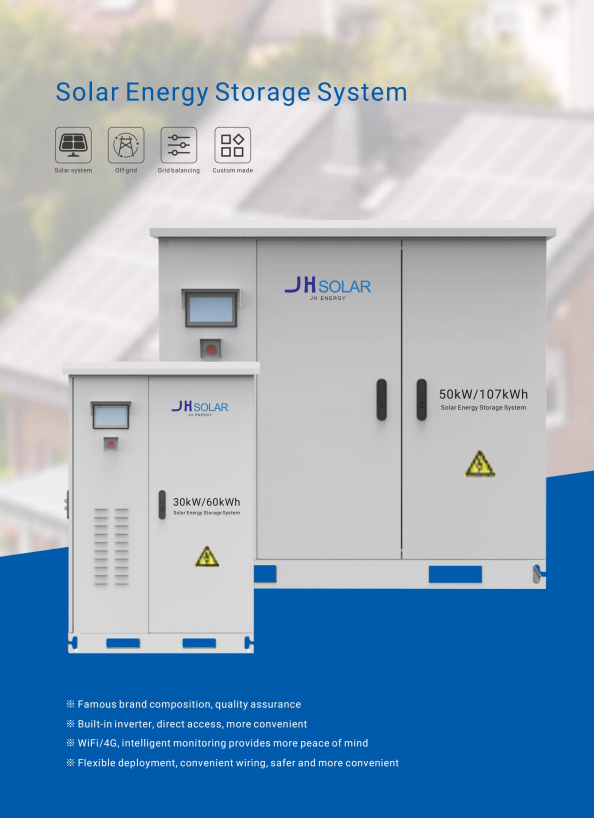

Solar Energy Storage System

: ~~No price~~

Collect

商品说明

The solar energy storage system integrated machineisdesignedtomeettheneedsof solarsystemsandenergystoragesystem.Ithashighenergysavingefficiency,highenergydensity,fastaccesstoon-grid/off-gridphotovoltaics,andstrongenvironmentaladaptability,especiallyindistributionandstorage.The system is integrated by thecabinet,air-cooledairconditioner,inverter/PCS,BMS,lithium battery,high-voltagecontrol box,fireprotection system,electrical system and safety auxiliary system

TechnicalParameters

Specifications	20kW/51.2kWh	30kW/61.44kWh	50kW/107kWh
Pack combination	256V200Ah/51.2kWh	307.2V200Ah/61.44kWh	716V150Ah/107kWh
Inverterpower	20kW	30kW	50kW
DCstandard voltage	256VDC	307.2VDC	716VDC
DC voltagerange	212-288VDC	245-345VDC	582-806VDC
Celltype	LFP3.2V/200Ah	LFP3.2V/200Ah	LFP3.2V/150Ah
Max.charge/discharge power	22kW	33kW	55kW
Max.input solarpower	26kW	39kW	65kW
Rated gridvoltage	380VAC
Rated gridfrequency	50/60Hz±5Hz
Battery cyclelife	>6000 times(0.5C@25℃)Energy retention rate≥80%
Charge anddischarge rate	≤0.5C
System efficiency/discharge depth	Maximum efficiency 97%/DOD90%
Thermalmanagement	Intelligent aircooling
Firefighting	PACKaerosol/cabinet aerosol
UPS	Backup time:10 minutes
Control method	local controlsystem
Operating mode	On-grid/off-grid
Communication	CAN/RS485/WiFi
Access method	AC bottom incomingline/three-phase four-wire/3L+N+PE
Useambient temperature	0℃~+50℃
Use ambient humidity	0~95%RH
Storagetemperature	-20℃~+60℃
Working altitude	2000m(>2000mderateduse)
InternationalProtection	IP54
Product Size1000*10	73*1925mm 110	015251173mm	100011942200mm
Product weight 1	00kg	1250kg	2100kg
