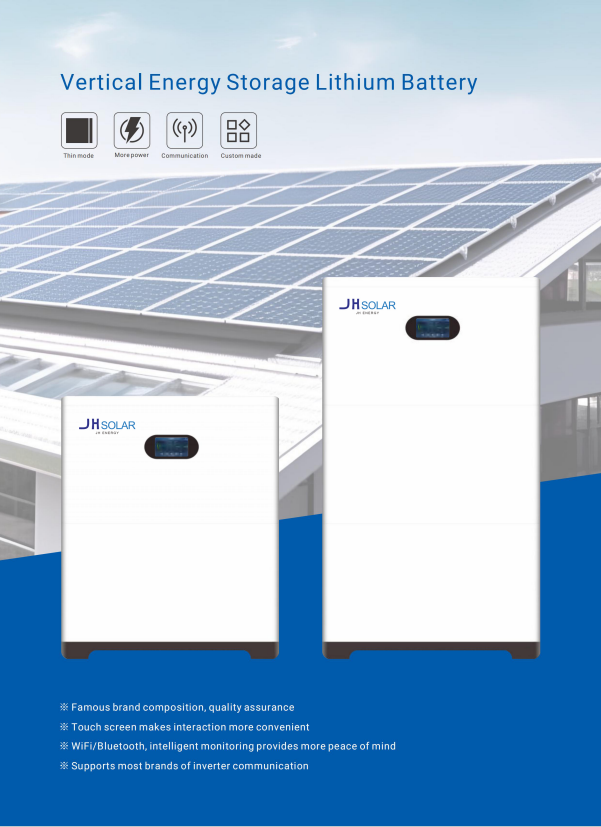

Vertical Energy Storage Lithium Battery

: ~~No price~~

Collect

商品说明

Household energy storage use high-quality squarealuminum-casedlithiumironphosphatebatteriesandare equipped with intelligentBMS.Iong life,high safetyperformance,beautiful appearance,freecombination,and easyinstallation.The battery packis equippedwith atouchLCDdisplayto visualizeoperatingdata.Compatible with most brands of photovoltaicinverters andabletocommunicate withthem.Itis widelyusedin distributed photovoltaic systems and homeenergystoragesystems.Provideefficientandcleanenergyfor household,industrial,commercial,agricultural and other electrical equipment.

Technical Parameters

Specifications	51.2V100Ah	51.2V200Ah
Can becombined	Parallel 3-layerstackable	Single parallelto15PCS
Battery packcapacity	5.12kWh	10.24kWh
Standarddischargecurrent	50A	100A
Maximum dischargecurrent	100A	105A
Working voltage range	43.2-57.6VDC	43.2-57.6VDC
Standard Voltage	51.2VDC	51.2VDC
Maximum chargingcurrent	50A	50A
Maximum charging voltage	57.6V	57.6V
Dischargedepth andlife	>6000 times(0.5C@25℃)Energy retentionrate≥80%
Working humidity	65±20%RH
Operating temperature	0~+40℃
Working altitude	≤2500m
Firefighting	Aerosol PACK12g
Cooling method	Natural cooling
Installation method	Verticalinstallation
InternationalProtection	IP20
Warranty	5~10Years
Communication method	Default:RS485/RS232/CAN(OptionalWiFi/4G/Bluetooth)
Certified product	CE ROHS FCCUN38.3MSDSISO9001
Product Size	630380150mm	630500150mm
Package Size	690440220mm	690560220mm
Net weight	45kg	90kg
Gross weight	51kg	96kg
