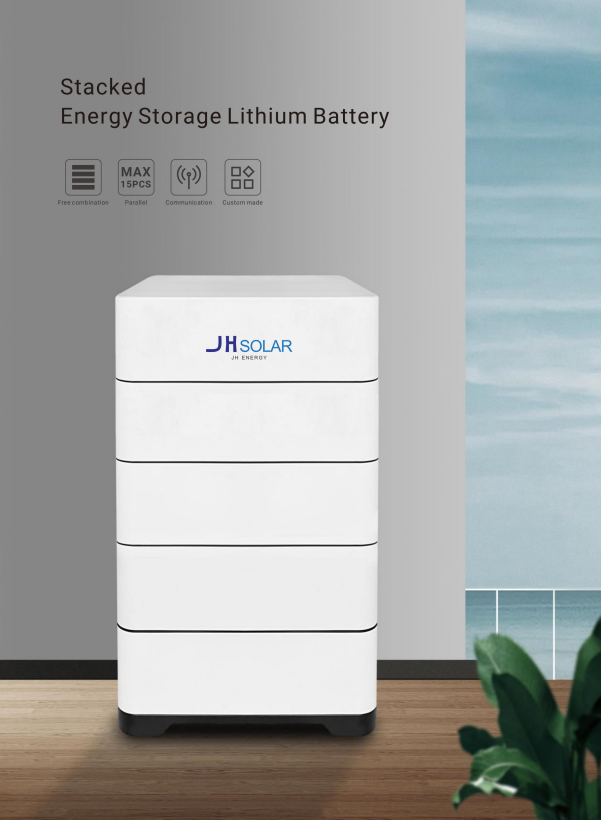

Stacked Energy Storage Lithium Battery

Cell Combination

15S1P

16S1P

Battery packcapacity

4.8kWh

5.12kWh

Standarddischargecurrent

50A

50A

Maximum dischargecurrent

100A

100A

Working voltage range

40.5-54VDC

43.2-57.6VDC

Standard Voltage

48VDC

51.2VDC

Maximum chargingcurrent

50A

50A

Maximum charging voltage

54V

57.6V

Discharge depthandlife

>6000 times(0.5C@25℃)Energy retention rate≥80%

Working humidity

65±20%RH

Operating temperature

0~+40℃

Working altitude

≤2500m

Firefighting

Aerosol PACK12g

Cooling method

Natural cooling

Installationmethod

Stackinstallation

InternationalProtection

P20

Warranty

5~10Years

Communication method

Default:RS485/RS232/CAN(OptionalWiFi/4G/Bluetooth)

Certified product

CE ROHS FCCUN38.3MSDSIS09001

Product Size

450*550*195mm

Package Size

510*610*260mm

Net weight

50kg

53kg

Gross weight

55kg

58kg
