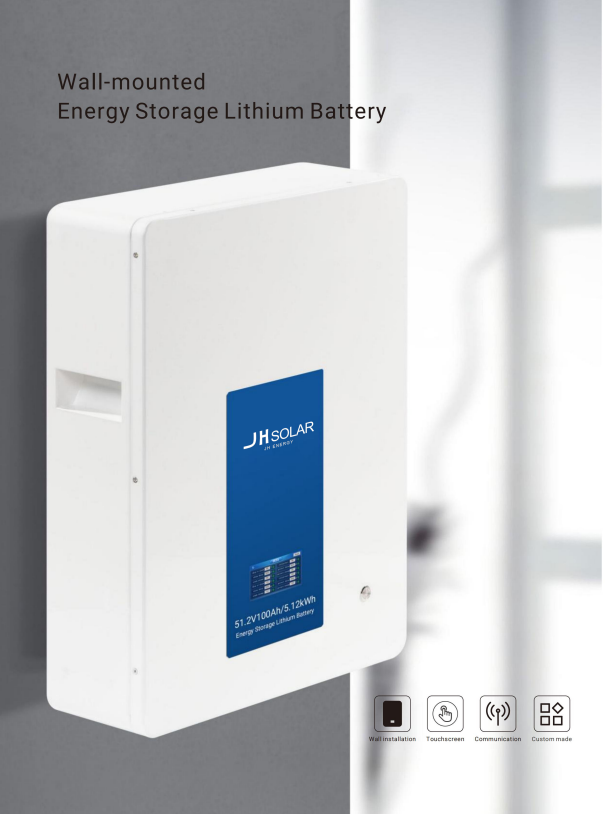

Wall-mountedEnergy Storage Lithium Battery

: ~~No price~~

Collect

商品说明

Household energy storage use high-quality squarealuminum-casedlithiumironphosphatebatteriesandare equipped with intelligentBMS.Iong life,high safetyperformance,beautiful appearance,freecombination,andeasyinstallation.ThebatterypackisequippedwithatouchLCDdisplaytovisualizeoperatingdata.Compatible with most brands of photovoltaicinvertersand abletocommunicate withthem.Itis widelyusedin distributed photovoltaic systems and homeenergystoragesystems.Provideefficientandcleanenergy forhousehold,industrial,commercial,agriculturalandotherelectricalequipment.

TechnicalParameters

Specification	48V50Ah	51.2V50Ah	48V100Ah	51.2V100Ah	48V2004b	51.2V200Ah
Cell Combination	15S1P	16S1P	15S1P	16S1P	15S1P	16S1P
Batterypack capacity	2.4kWh	2.56kWh	4.8kWh	5.12kWh	9.6kWh	10.24kWh
Standard dischargecurrent	50A	50A	50A	50A	50A	50A
Max.discharge current	100A	100A	100A	100A	105A	105A
Working voltage range	40.5-54VDC	43.2-57.6VDC	40.5-54VDC	43.2-57.6VDC	40.5-54VDC	43.2-57.6VDC
Standard Voltage	48VDC	51.2VDC	48VDC	51.2VDC	48VDC	51.2VDC
Max.charging current	50A	50A	50A	50A	105A	105A
Max.charging voltage	54V	57.6V	54V	57.6V	54V	57.6V
Discharge depthandlife	>6000 times(0.5C@25℃)Energy retentionrate≥80%
Working humidity	65±20%RH
Operating temperature	-10~+50℃
Working altitude	≤2500m
Firefighting	Aerosol PACK12g
Cooling method	Naturalcooling
Installation method	Wall mounting
International Protection	IP20
Max ofparallel	15PCS
Warranty	5~10Years
Communication method	Default:RS485/RS232/CAN(OptionalWiFi/4G/Bluetooth)
Certified product	CE ROHS FCCUN38.3MSDSIS09001
Product Size	400180585mm		400180585mm		400180610mm
Package Size	500240630mm		500240630mm		460240650mm
Net weight	35kg	40kg	42kg	46kg	102kg	106kg
Gross weight	40kg	45kg	50kg	54kg	112kg	116kg
