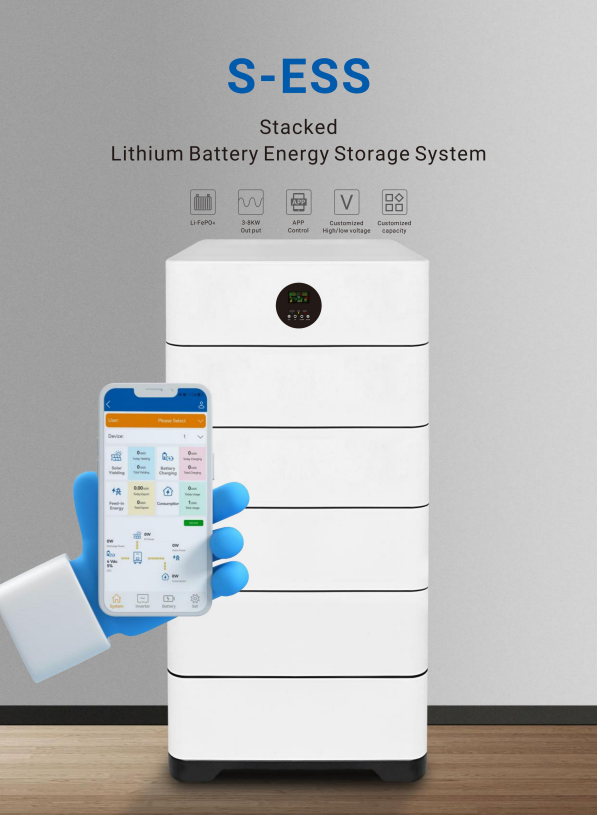

S-ESS Stacked Lithium Battery Energy Storage System

Ratedsolarinputvoltage                                                                                      360VDC

MPPTtrackingvoltagerange             120V-450V

Max  input  voltage(VOC)

at  lowest  temperature               500V

Maxinputpower                                                                                                     6000W

Number   ofMPPTtracking   paths                                                                           1Path

DC input voltagerange      42-60VDC

Ratedmainspowerinputvoltage                         220VAC/230VAC/240VAC

Grid power input voltage range                               170VAC~280VAC(UPS      mode)/120VAC~280VAC(Inverter       mode)

Grid input frequency range                                                           45Hz~55Hz(50Hz);55Hz~65Hz(60Hz)

Inverteroutputefficiency                                                                                  94%(MAX)

Inverter  output  voltage                                                220VAC±2%/230VAC±2%/240VAC±2%(Inverter        mode)

Inverter  output  frequency                                                           50Hz±0.5or60Hz±0.5(Inverter        mode)

Inverter  outputwaveform                     Pure  sine  wave

Gridoutputefficiency                         >99%

Maxmainschargingcurrent      60A

Maxsolarchargingcurrent                                                                                    100A

Maxchargingcurrent(Grid+solar)                                                                        100A

Optional  mode                                            Grid     priority/Solar    priority/Battery    priority

Warranty                                                                                            5~10Years

Communication                                                         Default:RS485/RS232/CAN(Optional              WiFi/4G/Bluetooth)

*Customized differentbrands of cell and different voltage,capacity,dimensions/color,OEM/ODM services
