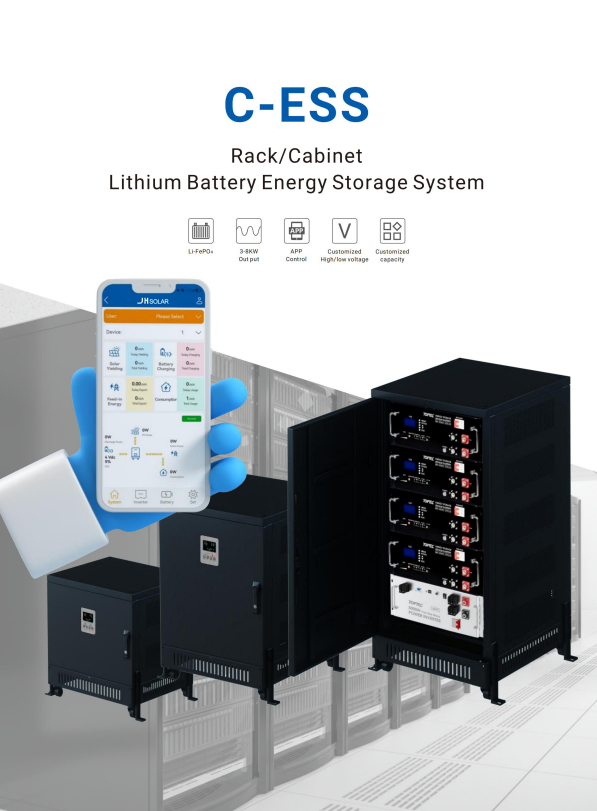

C-ESS Rack/Cabinet Lithium Battery Energy Storage System

: ~~No price~~

Collect

商品说明

The ESS series product(Energy Storage System)is a high-performance off-grid energy storage systemindependentlydevelopedbyus.Ituseshigh-qualitylithiumironphosphatebatteriesandisequippedwithan intelligent BMS battery managementsystem.It has longcycle life,highsafety performance,andgoodsealing;High-frequencyoff-gridphotovoltaicinverter,built-inMPPTcontroller,canprovideefficientand reliable energy solutions forphotovoltaic off-gridpowergenerationsystems,energystoragesystems, householdphotovoltaic storage systems,and industrialandcommercialenergystoragesystems.

Thesystemisequipped withaself-developed APP,supportsIOS/Androidmobilephones,remotelycontrols thecharginganddischargingofthebatterypack,monitorsthesystemoperatingdatainrealtime,andquicklyenters the troubleshooting work when the system fails,so asto restore theeffectivepower supplymoreefficiently.

Model	C-ESS-5	C-ESS-10	C-ESS-15	C-ESS-20
Capacity	5.12KWh/5KW	10.24KWh/5KW	15.36KWh/5KW	20.48KWh/5KW
Standarddischargecurrent	50A	50A	50A	50A
Max.discharge current	100A	100A	100A	100A
Working voltage range	43.2-57.6VDC	43.2-57.6VDC	43.2-57.6VDC	43.2-57.6VDC
Standard Voltage	51.2VDC	51.2VDC	51.2VDC	51.2VDC
Max.charging current	50A	50A	50A	50A
Max.charging voltage	57.6V	57.6V	57.6V	57.6V
Ratedsolarinput voltage	360VDC
MPPT tracking voltagerange	120V-450V
Maxinputvoltage(VOC)atlowest temperature	500V
Maxinput power	6000W
Number ofMPPTtracking paths	1Path
DCinput voltage range	42-60VDC
Rated mains powerinput voltage	220VAC/230VAC/240VAC
Grid powerinput voltage range	170VAC~280VAC(UPSmode)/120VAC~280VAC(Invertermode)
Gridinput frequency range	45Hz~55Hz(50Hz);55Hz~65Hz(60Hz)
Inverteroutputefficiency	94%(MAX)
Inverteroutputvoltage	220VAC±2%/230VAC±2%/240VAC±2%(Invertermode)
Inverteroutputfrequency	50Hz±0.5or60Hz±0.5(Inverter mode)
Inverter output waveform	Puresine wave
Grid outputefficiency	>99%
Max mains chargingcurrent	60A
Max solarchargingcurrent	100A
Max charging current(Grid+solar)	100A
Optional mode	Grid priority/Solarpriority/Battery priority
Warranty	5~10Years
Communication	Default:RS485/RS232/CAN(OptionalWiFi/4G/Bluetooth)
